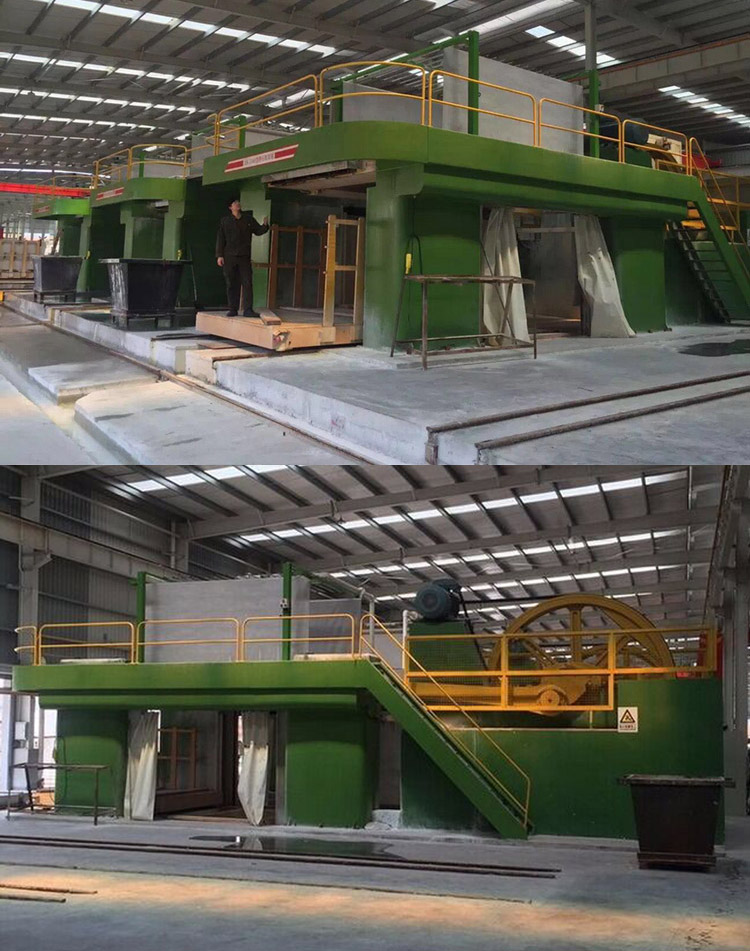

XB-S800-80/100
靜壓框架鋸（一體式）
Hydrostatic Slide Gang saw(Long steel led)
產品介紹 PRODUCT INTRODUCTION
這是一種新型的框架排鋸，鋸框固定在四個靜壓導軌上。采用先進的靜壓油膜技術和雙連桿結構，鋸框移動平穩(wěn)、順暢、阻力小。與其他排鋸相比，具有顯著的優(yōu)點。
1、更小的運行阻力，更快的切割速度；
2、更高的切割精度和平整度，節(jié)約石材，節(jié)省拋磨的成本；
3、更小的啟動電流，更省電；
4、更低噪音
5、易操作和維護
This is a new type frame gang saw which saw frame fixed on the four hydrostatic slide
guideway.Due to using advanced technology of hydrostatic oil film and double connecting rods,the saw frame move more smoothly and easily.Comparing with other gang saw,the special advantages are as follows;
1.Get better cutting efficiency and quality,save stone and easily polish;
2.More faster cutting speed;
3.Save more power,smaller start-up current;
4.More lower noise;
5.Easily operate and maintain.
技術參數 TECHICAL PARAMETER
型號 | Model No. | 單位 unit | XB-S800-80 | XB-S800-100 |
最大切割尺寸（長x寬x高） | Max.cutting block size (L x W x H) | mm | 3300x2000x2100 | 3300x2500x2100 |
最多可裝鋸片 | Max blade No. | pair | 80 | 100 |
鋸框沖程 | Working stroke of blade | mm | 800 | 800 |
最大鋸切進給速度 | Cutting speed | mm/h | 50-1000(artificial marble) 0-500(natural marble) | 50-1000(artificial marble) 0-500(natural marble) |
鋸條長度 | Blades length | kw | 4400(or 4350)x(≥1.5） | 4400（or 4350）x(≥1.5 |
主電機功率 | Main motor power | kw | 110 | 132 |
進給電機功率 | Auxiliary motor powe | kw | 7.5 | 7.5 |
油泵電機功率 | Pump moter powe | kw | 3 | 3 |
荒料車功率 | Trolley motor powe | kw | 1.5 | 1.5 |
耗水量 | Water consumption | m3/h | 80 | 100 |
總裝機功率 | Total power | kw | 122 | 144 |
外型尺寸（長寬高） | Dimension(L x W x H) | m | 13.5x5.15x5.1 | 13.5x5.15x5.1 |
機械總重量 | Weight | ton | 65 | 70 |
